MACHINES

Lap Grinder Variations

      This grinder is built to last. Designed to use 20" or 24" magnetic diamond grinding discs. It will speed up your productivity over a standard grinder and its versatility allows for work in lapidary, stone, ceramics, marble, plastic, and glass. Machine has a ¾ HP reversible motor and is constructed of 2x2” square steel tubing. Water hookup is simple.

Sale Prices

    BECon 2017 Show Special
    Standard 24" Lap - $2,800

  • 20" Frame
    • 18" & 20" Lap - $2,800.00
    •       *18" & 20" lap use the same 20" frame.
  • 24" Frame
    • 24" Lap - $3,495.00
    •       *Includes $75 pallet and packing charge
    •       *Wood crate extra.
  • Optional Addons
    • Pass-Through for 18" & 20" Lap - $300
    • Motor Upgrade 1HP - $75
    • Variable Speed Upgrade - $650
    • Center Water Feed - $375

Specifications

  • ¾ horse rugged Single speed farm duty reversible motor. Head speed is approximately 700 rpm.
  • Manual thermal protection reset.
  • 115volts, 10.5 amps.
  • Emergency STOP button. Turn the machine off with a bump of your knee. PUSH to turn off and PULL to reset. Not to be used as the off and on switch.
  • Powder coated frame for extra rust protection.
  • Belt guard to keep fingers away from pulleys and belts.
  • 32 inch tire with room to clean out between the top plate. Manageable tire size so the grinder can fit through doorways and down stairs.
  • Leveling feet.
  • Head height 35", adjustable up to 40” *Please specify.
  • 23 ¾” head precision surface ground to ± .010" and from top to back side ± .005".
  • Water hookup, 3/8 compression fitting, 1 ¼ " drain that you can fit a hose or pipe to with an in line valve, at an easy reach, as my main shut off. Loc-line spout reaches comfortably to the center.

Additional Info

Allow 4 - 6 weeks for delivery.

Machine is shipped Freight Collect FOB Hillsboro, OR.

Warranties:

Grinder: 1 Year Parts & Labor
Motor: 1 Year Parts & Labor

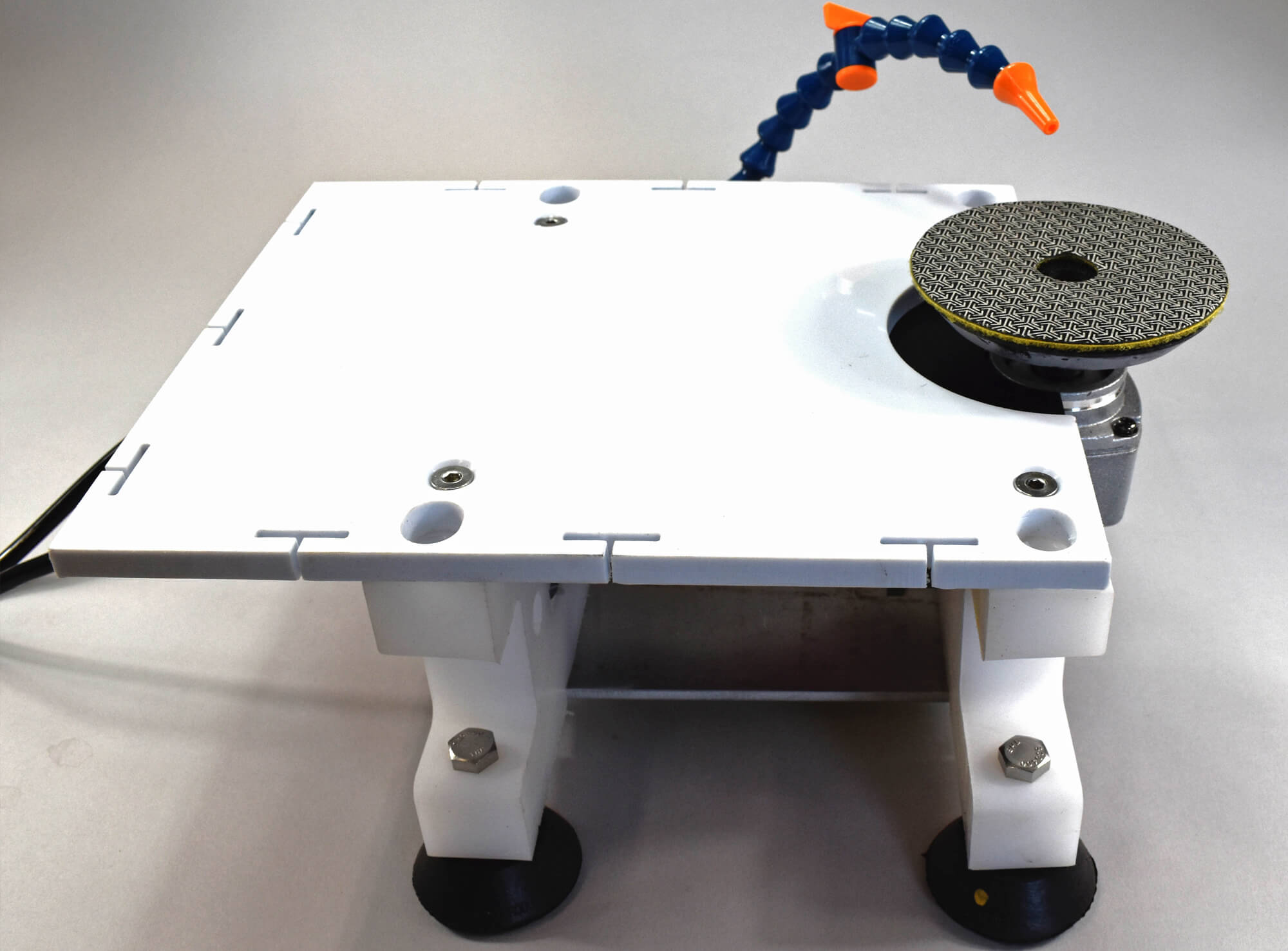

Mini Lap Grinder

Mini Lap Grinder
Splash Pan Add-On
Mini Lap Grinder
Splash Pan Add-On
Mini Lap Grinder

      "...I've only used it a little bit, but I can tell I'm gonna LOVE it! I used the bowl surround to grind a small test piece using a 4 inch 50 grit pad at highest speed, and I didn't even need an apron. I can't believe I've got a small lap grinder for less than a thousand bucks! I'll bet other glass artists with limited space and budgets will want one, too."

-Stephen Adams

Sale Prices

  • Mini Lap - $950.00
  • Splash Pan - $45.00       *Add-on

Specifications

  • Flat grinding: Use 4"-7" flat diamond disks.
  • Side grinding: Use 3" water-fed drum.
  • Heads 5/8-11 threads
  • Variable Speed.
  • Center water feed and/or loc-line water feed options.
  • Adjustable water flow rate
  • Interchangeable - 30, 60, 80, 100, 200, 400+ grit size.

Additional Info

If machine is out of stock, allow 4 - 6 weeks for delivery.

Machine is shipped Freight Collect FOB Hillsboro, OR.

Murrine Chopper

      This production murrine cane chopper has a left hand feed with an adjustable stop for quickly cutting consistant lengths of glass.

Sale Prices

  • Murrine Chopper - $875.00
  • Chip Guard - $39.00       *Add-on

Specifications

  • 69 lbs
  • 17"   x   11 1/2"   x   15 1/2".
  • 1 ton press.
  • 1" carbide tipped blades provide clean cuts and minimal crushing of glass.
  • Cuts up to 1" thick or multiple cuts simultaneously with cane fed from left-hand side.
  • Adjustable stop for multiple cuts of the same size.
  • Drop hole next to blades to catch small pieces.
  • Extra space to slide a pan under blades to catch debris.
  • Full stop adjustment so blades will not touch
  • Small chips are normal on top edge.

Additional Info

Wood Shipping Crate - $25

If machine is out of stock, allow 4 - 6 weeks for delivery.

Machine is shipped Freight Collect FOB Hillsboro, OR.
